SMC Compact Guided Cylinder (MGP Series)

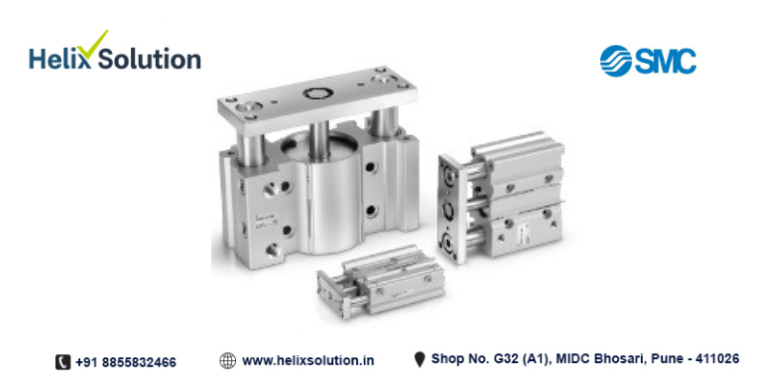

SMC Compact Guided Cylinder MGP Series

Technical Specifications

Bore size [mm] 12 16 20 25 32 40 50 63 80 100
Action Double acting
Fluid Air
Proof pressure 1.5 MPa
Maximum operating pressure 1.0 MPa
Minimum operating pressure 0.12 MPa 0.1 MPa
Ambient and fluid temperature -10 to 60°C (No freezing)
Piston speed *1 50 to 500 mm/s 50 to 400 mm/s
Cushion Rubber bumper on both ends
Lubrication Not required (Non-lube)
Stroke length tolerance +1.5 / 0 mm
*1: Maximum speed with no load. Depending on operating conditions, the piston speed may not be satisfied. Make a model selection considering payload according to load capacity curves.

Standard Strokes

Bore size [mm] Standard stroke [mm]
12, 16 10 20 30 40 50 75 100 125 150 175 200 250
20, 25 20 30 40 50 75 100 125 150 175 200 250 300 350 400
32 to 100 25 50 75 100 125 150 175 200 250 300 350 400

Manufacture of Intermediate Strokes

Specification Spacer Installation Type Exclusive Body (-XB10)
Description Spacers are installed in the standard stroke cylinder.
• ø12 to ø32: Available in 1 mm stroke increments.
• ø40 to ø100: Available in 5 mm stroke increments. 		Dealing with the stroke by manufacturing an exclusive custom body.
• All bore sizes: Available in 1 mm increments.
Model No. Refer to standard model numbers Add "-XB10" to the end of standard model number
Applicable Stroke [mm] • ø12, ø16: 1 to 249 mm
• ø20, ø25: 1 to 399 mm
• ø40 to ø100: 5 to 395 mm 		• ø12, ø16: 11 to 249 mm
• ø20, ø25: 21 to 399 mm
• ø32 to ø100: 26 to 399 mm
Example Part No.: MGPM20-39Z
A spacer 1 mm in width is installed in the MGPM20-40. (C dimension is 77 mm). 		Part No.: MGPM20-39Z-XB10
Special body manufactured for 39 stroke. (C dimension is 76 mm).

Theoretical Output [N]

Bore size [mm] Rod size [mm] Operating direction Piston area [mm²] Operating pressure [MPa]
0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
12 6 OUT 113 23 34 45 57 68 79 90 102 113
IN 85 17 25 34 42 51 59 68 76 85
16 8 OUT 201 40 60 80 101 121 141 161 181 201
IN 151 30 45 60 75 90 106 121 136 151
20 10 OUT 314 63 94 126 157 188 220 251 283 314
IN 236 47 71 94 118 141 165 188 212 236
25 10 OUT 491 98 147 196 245 295 344 393 442 491
IN 412 82 124 165 206 247 289 330 371 412
32 14 OUT 804 161 241 322 402 483 563 643 724 804
IN 650 130 195 260 325 390 455 520 585 650
40 14 OUT 1257 251 377 503 628 754 880 1005 1131 1257
IN 1103 221 331 441 551 662 772 882 992 1103
50 18 OUT 1963 393 589 785 982 1178 1374 1571 1767 1963
IN 1709 342 513 684 855 1025 1196 1367 1538 1709
63 18 OUT 3117 623 935 1247 1559 1870 2182 2494 2805 3117
IN 2863 573 859 1145 1432 1718 2004 2290 2577 2863
80 22 OUT 5027 1005 1508 2011 2513 3016 3519 4021 4524 5027
IN 4647 929 1394 1859 2324 2788 3253 3718 4182 4647
100 25 OUT 7854 1571 2356 3142 3927 4712 5498 6283 7069 7854
IN 7363 1473 2209 2945 3682 4418 5154 5890 6627 7363

Made to Order & Custom Options

Symbol Specifications
-X144 Symmetrical port position
-X471 Enlarged plate and body gap dimensions
-X867 Side porting type (Plug location changed)
-XA Change of guide rod end shape
-XB6 Heat resistant cylinder (-10 to 150°C)
-XB10 Intermediate stroke (Using exclusive body)
-XB13 Low speed cylinder (5 to 50 mm/s)
-XB22 Shock absorber soft type RJ series type
-XC4 With heavy duty scraper
-XC6 Made of stainless steel
-XC8 Adjustable stroke cylinder / Adjustable extension type
-XC9 Adjustable stroke cylinder / Adjustable retraction type
-XC22 Fluororubber seal
-XC35 With coil scraper
-XC69 With shock absorber
-XC79 Tapped hole, drilled hole, pinned hole machined additionally
-XC82 Bottom mounting type
-XC85 Grease for food processing equipment
-XC88(W) Spatter resistant coil scraper, Lube-retainer, Grease for welding (Rod parts: Stainless steel 304)
-XC89W Spatter resistant coil scraper, Lube-retainer, Grease for welding (Rod parts: S45C)
-XC91(W) Spatter resistant coil scraper, Grease for welding (Rod parts: S45C)
-XC92 Dust resistant actuator
