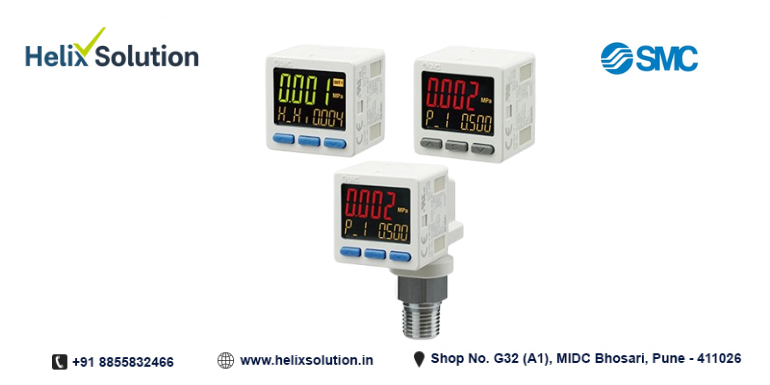

SMC Digital Pressure Switch
SMC Digital Pressure Switch
Technical Specifications
|
Specification |
Details |
|---|---|
|
Pressure Range |
-1 to 1 MPa, 0 to 10 MPa, 0 to 100 MPa (optional) |
|
Display Type |
LCD / LED Digital Display |
|
Output Signal |
PNP / NPN (2 or 3 wire), 4-20 mA, 0-10 V |
|
Accuracy |
±0.5% FS, ±1% FS (depending on model) |
|
Switch Outputs |
1 or 2 programmable outputs |
|
Operating Temperature |
-10°C to +60°C |
|
Process Connection |
G1/4, G1/2, R1/4, M20x1.5, etc. |
|
Power Supply |
12-24V DC, 24V DC |
|
Enclosure Rating |
IP65, IP67 |
|
Application |
Hydraulic, pneumatic, water, gas pressure monitoring |
