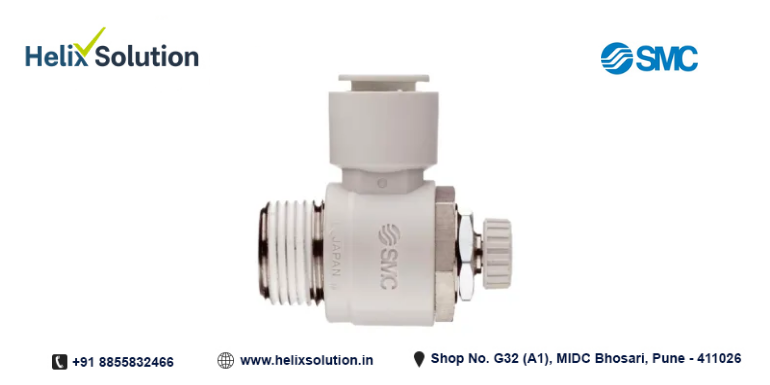

SMC Pneumatic Flow Control
SMC Pneumatic Flow Control
Technical Specifications
|
Specification |
Details |
|---|---|
|
Adjustment Type |
Needle valve (uni-directional control) |
|
Port / Thread Sizes |
M5, 1/8", 1/4", 3/8", 1/2" BSP |
|
Tube Sizes Supported |
4 mm, 6 mm, 8 mm, 10 mm, 12 mm |
|
Body Material |
Brass / Resin / Stainless Steel |
|
Pressure Range |
0.1 to 1.0 MPa |
|
Operating Temperature |
0°C to 60°C |
|
Configuration |
Flow control fitting |
|
Application |
Pneumatic airflow and speed control |
|
Compatible Tubing |
PU / Nylon Tubing |
