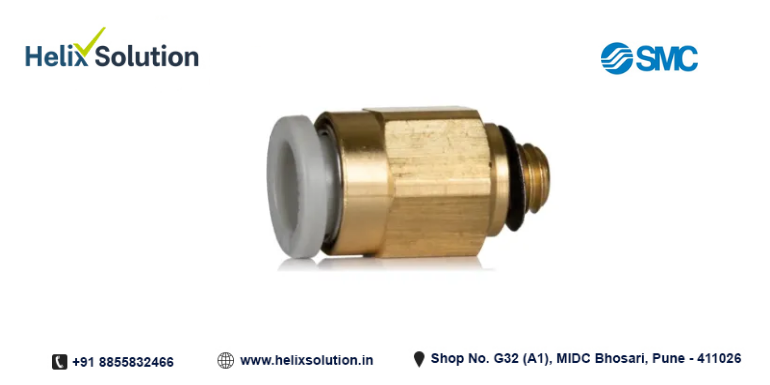

SMC Pneumatic Male Connector

Tube Sizes Supported

4 mm, 6 mm, 8 mm, 10 mm, 12 mm

Thread Sizes

M5, 1/8", 1/4", 3/8", 1/2" BSP

Connection Type

Push-in + Male Thread (Straight)

Body Material

Nickel-Plated Brass / Stainless Steel

Operating Pressure

0 to 1.0 MPa

Operating Temperature

0°C to 60°C

Configuration

90° Male Elbow

Application

Pneumatic tubing and compressed-air connections

Compatible Tubing

PU / Nylon Tubing
