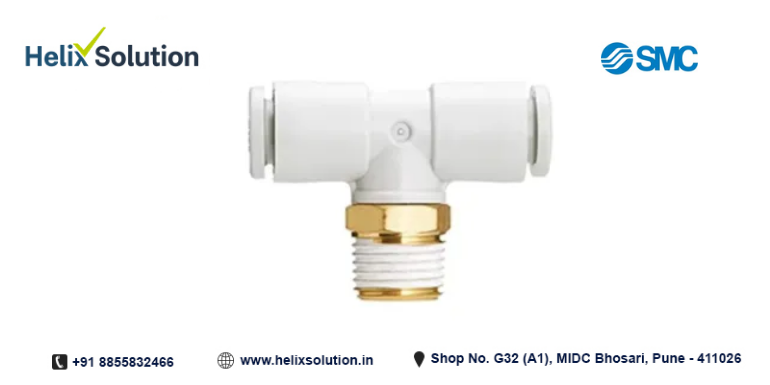

SMC Pneumatic Male Tee Branch
SMC Pneumatic Male Tee Branch
Technical Specifications
|
Specification |
Details |
|---|---|
|
Tube Sizes Supported |
4 mm, 6 mm, 8 mm, 10 mm, 12 mm |
|
Thread Sizes |
M5, 1/8", 1/4", 3/8", 1/2" BSP |
|
Connection Type |
Push-in (2 ports) + Male Thread (1 port) |
|
Body Material |
Nickel-Plated Brass / Stainless Steel |
|
Operating Pressure |
0 to 1.0 MPa |
|
Operating Temperature |
0°C to 60°C |
|
Configuration |
Tee Branch |
|
Application |
Pneumatic air-line branching |
|
Compatible Tubing |
PU / Nylon Tubing |
