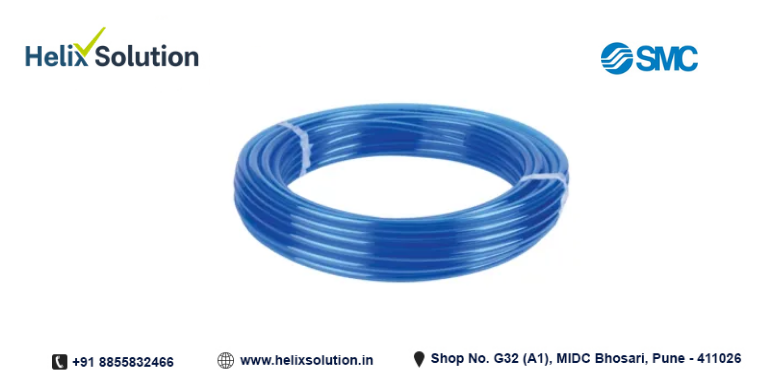

SMC Pneumatic PU Tube and Coil
SMC Pneumatic PU Tube and Coil
Technical Specifications – Polyurethane Tubing TU/TIUB Series
TU0425BU– 20
Tubing model — e.g. TU0425
Color — e.g. BU (Blue Transculent)
Length per roll — e.g. 20 (20 m roll)
Tubing Size
| Model | Tubing size | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Metric size (TU series) | Inch size (TIUB series) | |||||||||||
| TU0212 | TU0425 | TU0604 | TU0805 | TU1065 | TU1208 | TU1610 | TIUB01 | TIUB05 | TIUB07 | TIUB11 | TIUB13 | |
| Tubing O.D. (mm) | 2 | 4 | 6 | 8 | 10 | 12 | 16 | 3.18 | 4.76 | 6.35 | 9.53 | 12.7 |
| Tubing I.D. (mm) | 1.2 | 2.5 | 4 | 5 | 6.5 | 8 | 10 | 2 | 3.18 | 4.23 | 6.35 | 8.46 |
Length per Roll
| Symbol | Length |
|---|---|
| 20 | 20 m roll |
| 100 | 100 m roll |
| 200 | 200 m roll |
Color Options
| Symbol | Color |
|---|---|
| B | Black (Opaque) |
| W | White (Opaque) |
| R | Red (Translucent) |
| BU | Blue (Translucent) |
| Y | Yellow (Opaque) |
| G | Green (Opaque) |
| C | Clear (Material color) |
| YR | Orange (Opaque) |
| BU1 | Solid blue (Opaque) |
| BU2 | Clear blue (Translucent) |
| BU3 | Medium blue (Opaque) |
| BR1 | Brown (Opaque) |
| G1 | Solid green (Opaque) |
| G2 | Clear green (Translucent) |
| G3 | Neon green (Opaque) |
| G4 | Dark green (Opaque) |
| Symbol | Color |
|---|---|
| GR1 | Gray (Opaque) |
| GR2 | Light gray (Opaque) |
| P1 | Neon pink (Opaque) |
| PU1 | Solid purple (Opaque) |
| PU2 | Clear purple (Translucent) |
| R1 | Solid red (Opaque) |
| R2 | Clear red (Translucent) |
| S1 | Silver (Opaque) |
| Y1 | Solid yellow (Opaque) |
| Y2 | Clear yellow (Translucent) |
| Y3 | Neon yellow (Opaque) |
| YR1 | Clear orange (Translucent) |
| YR2 | Neon orange (Opaque) |
